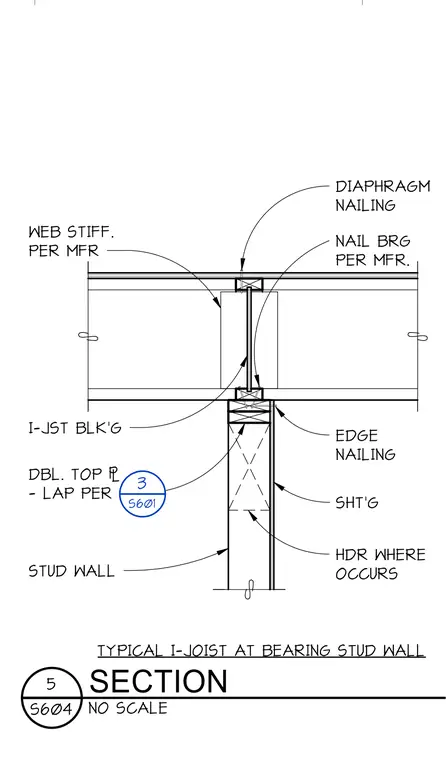

This assembly features an I-joist bearing on a double top plate stud wall. The I-joist includes web stiffeners installed per the manufacturer's specifications. Blocking is provided between the I-joists, with nailing for the diaphragm and bearing connections performed according to manufacturer requirements. The supporting wall consists of a double top plate with lapped joints, sheathing, and a header where required by the framing layout.
