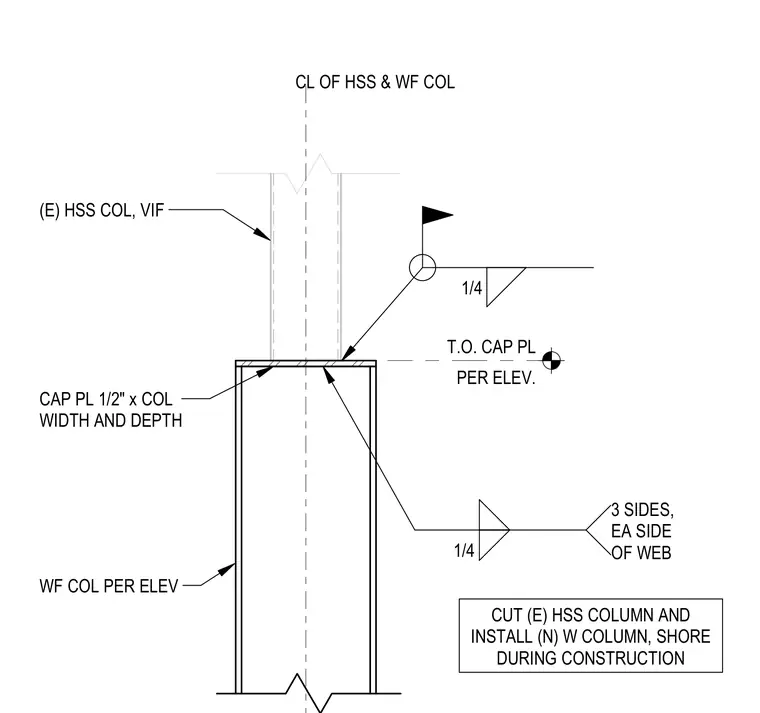

An existing hollow structural section column is cut and shored during construction to install a new wide-flange column below. A half-inch thick cap plate matching the column width and depth is welded to the top of the wide-flange column with a quarter-inch fillet weld on three sides and on each side of the web. The centerlines of both the hollow structural section column and the wide-flange column align vertically.
(E) HSS COL, VIF WF COL PER ELEV PER ELEV. CUT (E) HSS COLUMN AND INSTALL (N) W COLUMN, SHORE DURING CONSTRUCTION 1/4 CL OF HSS & WF COL T.O. CAP PL 1/4 3 SIDES, EA SIDE OF WEB CAP PL 1/2" x COL WIDTH AND DEPTH
