Mechanical Screen Structural Steel Brace and Beam Connections

Materials

Steel

Elements

Beams Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection

About this detail

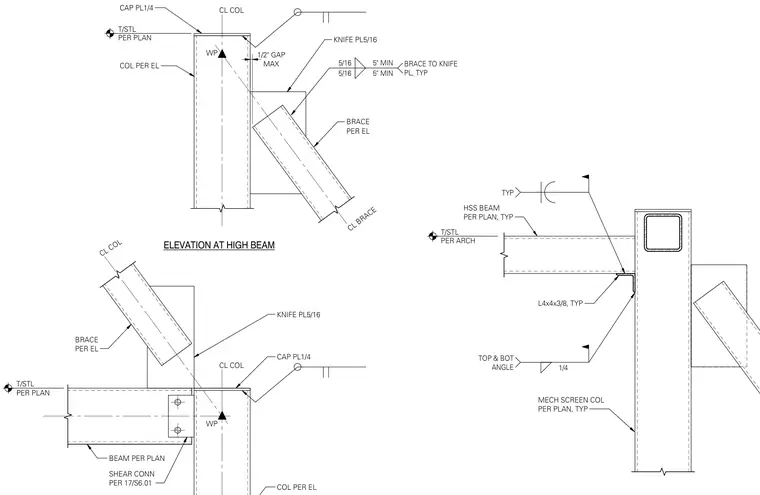

A hollow structural section brace connects to a column through a five-sixteenth-inch knife plate welded with five-sixteenth-inch fillet welds, maintaining a maximum half-inch gap at the end of the brace. A quarter-inch cap plate is welded to the top of the column. A beam frames into the column with a shear connection detailed on another sheet, located below the brace intersection. At another condition, an HSS beam frames into a mechanical screen column supported by typical four-by-four-by-three-eighths-inch top and bottom angles welded with quarter-inch fillet welds.
