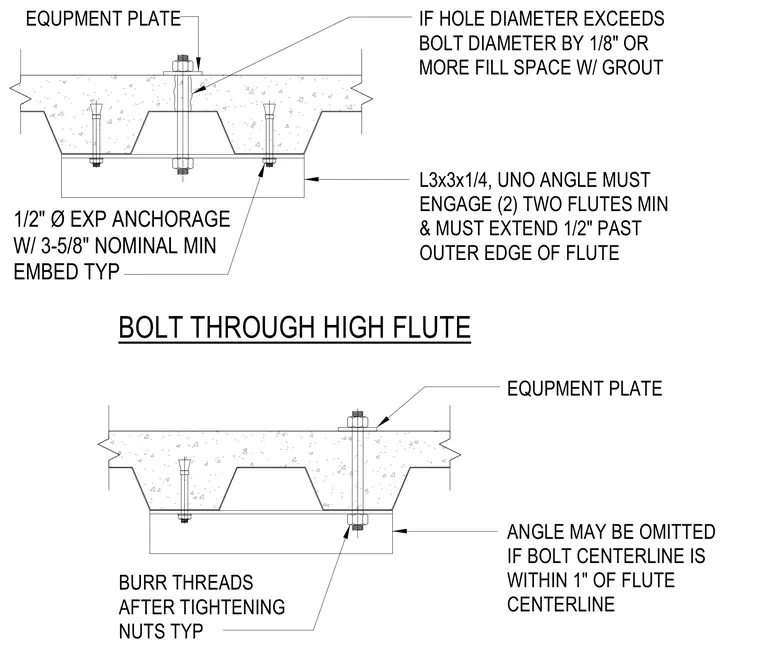

An equipment plate bears on top of a concrete slab over metal deck and connects via a through-bolt passing through the high flute. The through-bolt features a three-inch by three-inch by one-quarter-inch angle below the deck that must engage at least two flutes and extend one-half inch past the outer edge of the flute unless the bolt centerline is within one inch of the flute centerline. Additional anchorage is provided by one-half-inch diameter expansion anchors with a nominal minimum embedment of three and five-eighths inches typical. If the hole diameter exceeds the bolt diameter by one-eighth inch or more, the space is filled with grout. All bolt threads are burred after tightening nuts typical.
L3x3x1/4, UNO ANGLE MUST ENGAGE (2) TWO FLUTES MIN & MUST EXTEND 1/2" PAST OUTER EDGE OF FLUTE ANGLE MAY BE OMITTED IF BOLT CENTERLINE IS WITHIN 1" OF FLUTE CENTERLINE BURR THREADS AFTER TIGHTENING NUTS TYP EQUPMENT PLATE 1/2" Ø EXP ANCHORAGE W/ 3-5/8" NOMINAL MIN EMBED TYP BOLT THROUGH HIGH FLUTE IF HOLE DIAMETER EXCEEDS BOLT DIAMETER BY 1/8" OR MORE FILL SPACE W/ GROUT EQUPMENT PLATE
