Non-Bearing Concrete Tilt-Up Panel Corner

Materials

Elements

Connections / Plates Roof / Floor Openings

About this detail

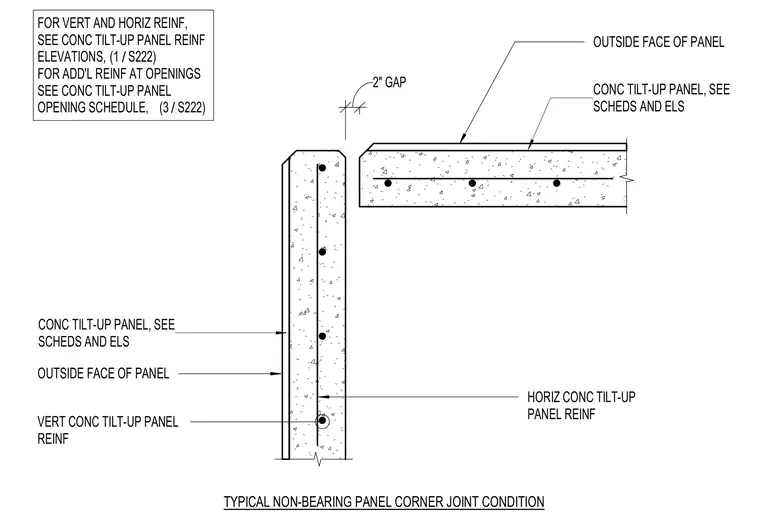

A typical non-bearing concrete tilt-up panel corner joint condition features a 2-inch gap between adjacent panels. Each concrete tilt-up panel includes vertical and horizontal reinforcement located near the outside face of the panel. Vertical and horizontal reinforcement requirements are referenced to the concrete tilt-up panel reinforcement elevations, and additional reinforcement at openings is referenced to the opening schedule.
