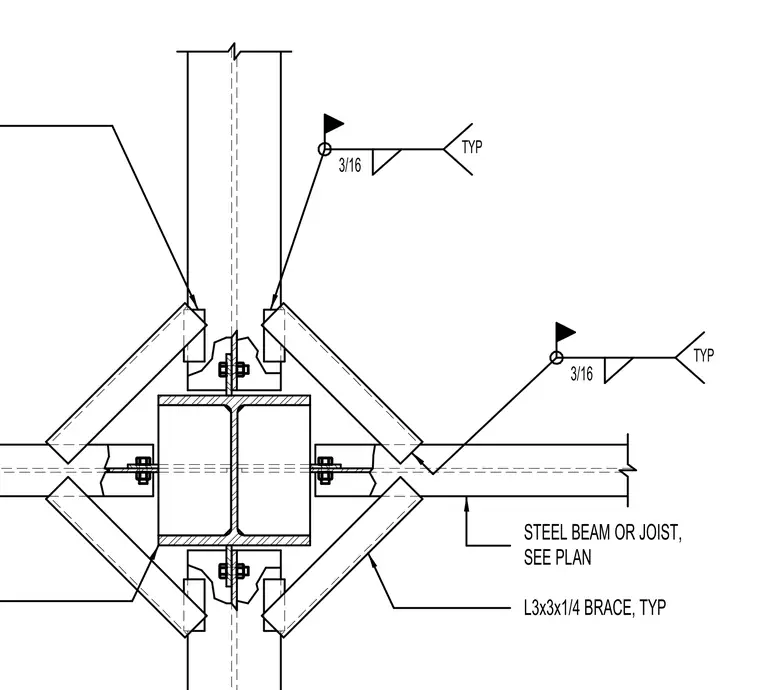

This structural steel connection details diagonal angle braces tied into a central gusset plate assembly. The framing incorporates 3x3x1/4-inch structural steel angles typically sized per plan, connecting to steel beams or joists with bolted gusset connections. Field welds are specified as 3/16-inch fillet welds typical at the gusset plate and framing intersections. The gusset plates transfer lateral forces from the bracing members into the primary structural column and beam grid.
