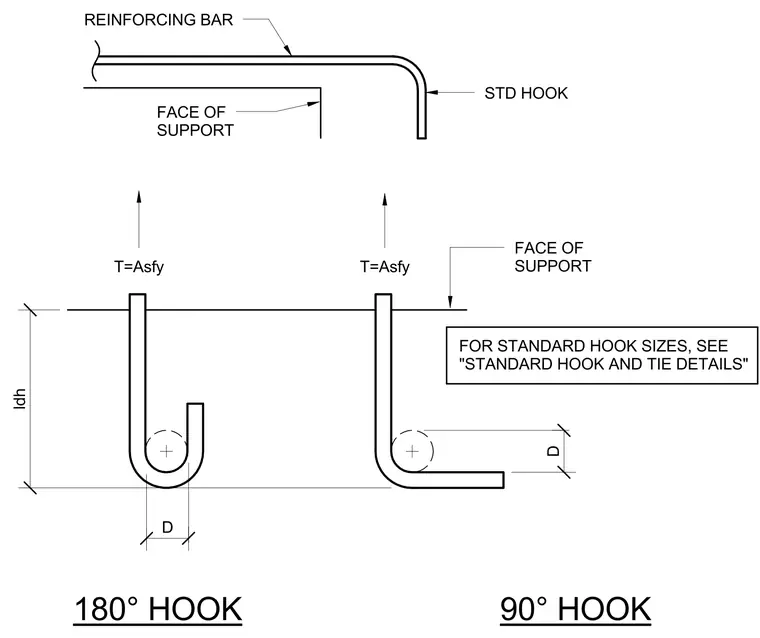

Reinforcing bars terminate at the face of support with standard 90-degree and 180-degree hooks. The development length ldh is measured from the face of support to the outer edge of the hook. Bar tension is calculated as T equals Asfy. Standard hook sizes and bend diameters D conform to standard hook and tie detail requirements.
REINFORCING BAR T=Asfy FACE OF SUPPORT FACE OF SUPPORT STD HOOK 90° HOOK 180° HOOK T=Asfy D D ldh FOR STANDARD HOOK SIZES, SEE "STANDARD HOOK AND TIE DETAILS"
