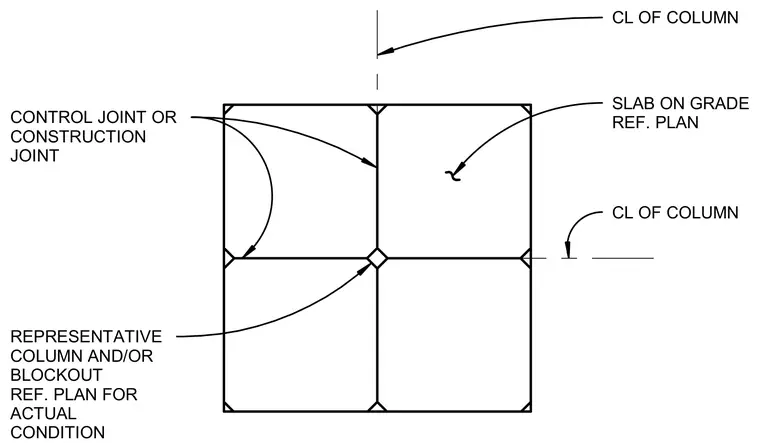

A slab on grade reference plan details the layout of control joints or construction joints intersecting at column centerlines. Representative column and blockout locations are referenced for actual site conditions.
REPRESENTATIVE COLUMN AND/OR BLOCKOUT REF. PLAN FOR ACTUAL CONDITION SLAB ON GRADE REF. PLAN CONTROL JOINT OR CONSTRUCTION JOINT CL OF COLUMN CL OF COLUMN
