Structural · S-QYXXG

Concrete Slab on Grade and Foundation Wall Junction

Materials

Concrete

Elements

Beams Walls Retaining Walls Floors / Slabs Foundations / Footings Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

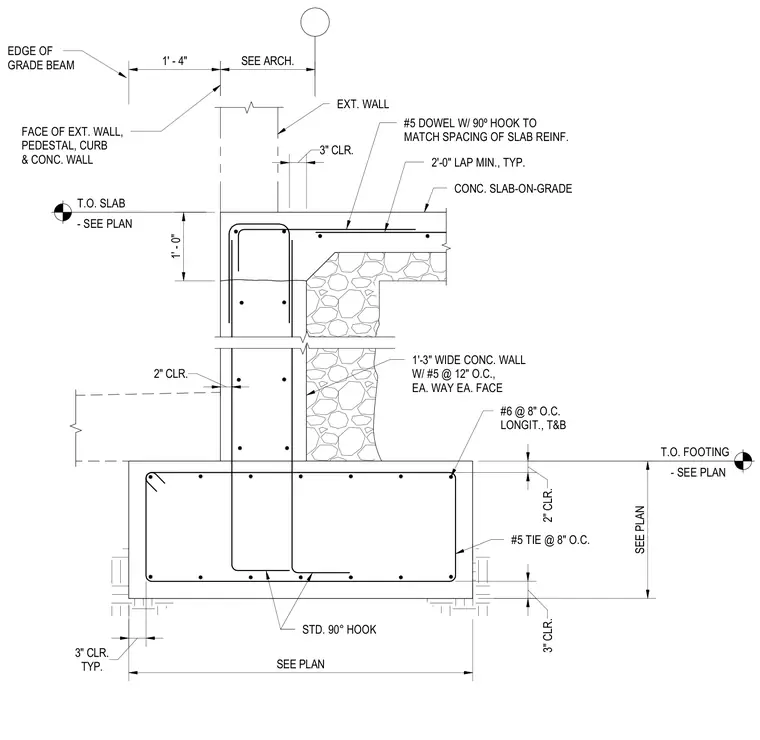

A concrete slab-on-grade bears on a 1'-3" wide concrete wall supported by a continuous grade beam footing. The slab features number 5 dowels with 90-degree hooks matching the slab reinforcement spacing, with a 2'-0" minimum lap length typical. The foundation wall is reinforced with number 5 bars at 12 inches on center each way, each face. The grade beam footing includes number 6 longitudinal bars top and bottom, and number 5 ties at 8 inches on center, maintaining 2-inch and 3-inch clearances as specified.
