Loading Dock Retaining Wall

Materials

Concrete

Elements

Beams Walls Retaining Walls Floors / Slabs Foundations / Footings Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

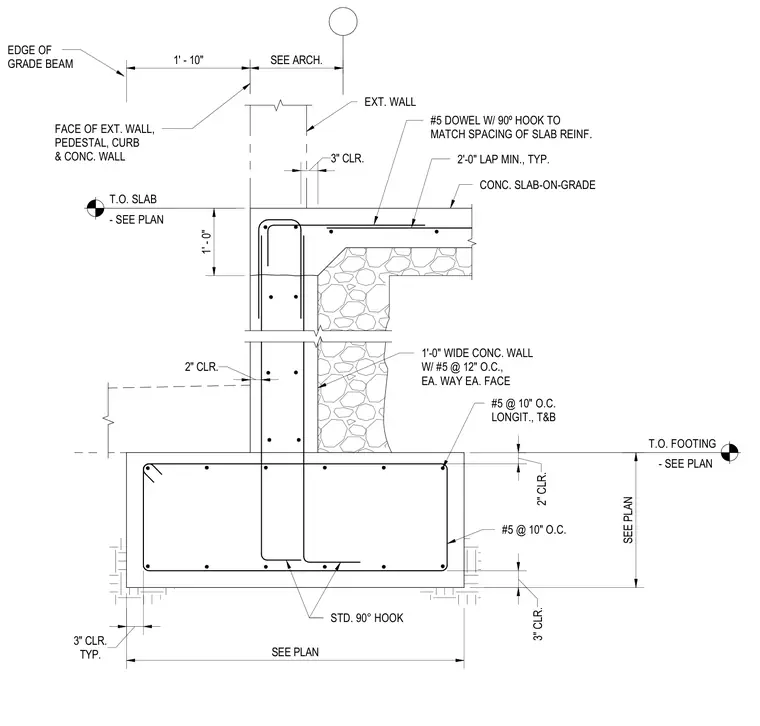

A concrete retaining wall and grade beam support a concrete slab-on-grade. The assembly features a one-foot-wide concrete wall reinforced with number five bars at twelve inches on center each way and each face, tying into a continuous concrete footing. Number five dowels with standard ninety-degree hooks tie the slab-on-grade to the wall matching the slab reinforcing spacing, with a two-foot minimum lap splice. Concrete clear cover is maintained at three inches typically at the footing exterior and two inches at the wall and slab interfaces. The edge of the grade beam is dimensioned relative to the exterior wall face per architectural drawings, with top of slab and top of footing elevations referenced to the structural plan.
