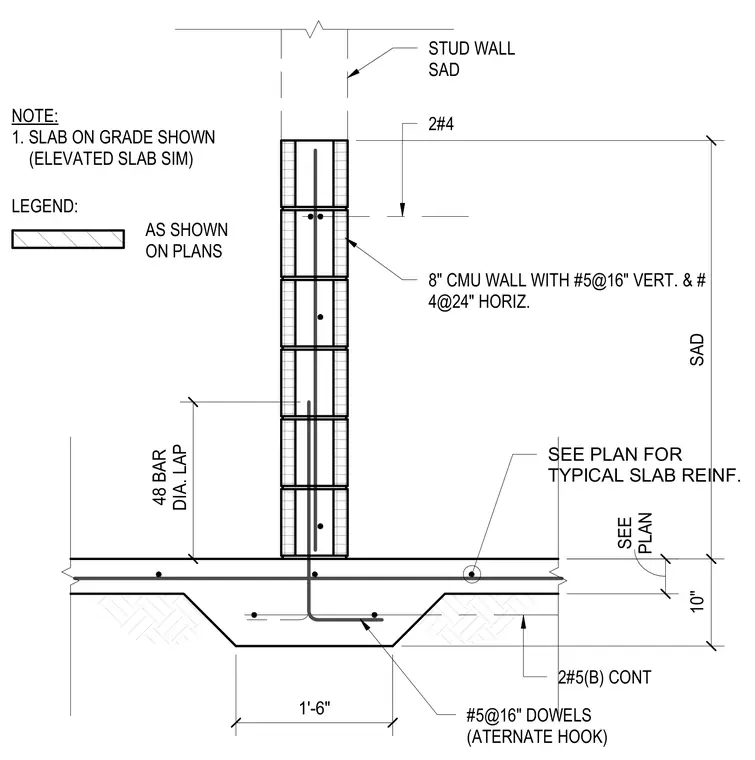

An eight-inch concrete masonry unit wall is supported by a concrete footing and slab-on-grade. The masonry wall contains number five vertical reinforcing bars at sixteen inches on center and number four horizontal bars at twenty-four inches on center, reinforced at the top by two number four bars. Number five dowels with alternating hooks extend from the footing into the masonry wall with a forty-eight bar diameter lap splice. The concrete footing is one foot six inches wide and ten inches deep below the slab, reinforced with two continuous bottom number five bars. A stud wall bears on top of the masonry wall, and typical slab reinforcement is sized per plan.
STUD WALL SAD SEE PLAN FOR TYPICAL SLAB REINF. 8" CMU WALL WITH #5@16" VERT. & # 4@24" HORIZ. 2#4 NOTE: 1. SLAB ON GRADE SHOWN (ELEVATED SLAB SIM) 2#5(B) CONT #5@16" DOWELS (ATERNATE HOOK) LEGEND: AS SHOWN ON PLANS 10" SAD PLAN SEE 1'-6" 48 BAR DIA. LAP
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
