Structural · S-QY7DA

Sloped Roof Deck Connections at Wide Flange and HSS Beams

Materials

Steel Metal (misc.)

Elements

Beams Roofs Decks Connections / Plates

Connections

HSS Connection

About this detail

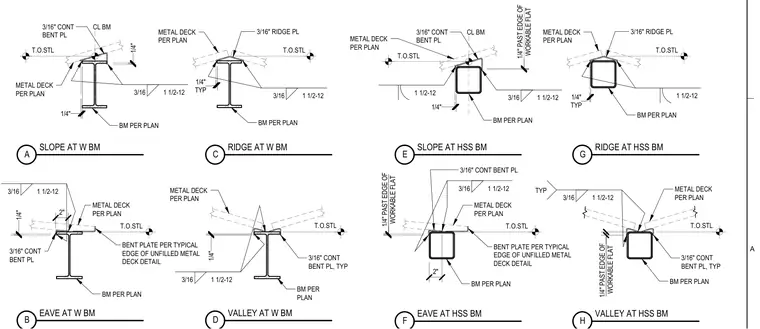

These structural details illustrate sloped metal deck bearing and connection conditions at wide flange and hollow structural section beams for roofs and ridges. A continuous three-sixteenths-inch bent plate or ridge plate secures the metal deck to the top of the steel beam, configured for slope, eave, valley, and ridge conditions per plan. Fillet welds connect the bent plates and framing members using sizes indicated on the drawings. Top of steel elevations and centerline dimensions locate the structural members relative to the sloped metal deck assemblies.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
