Electrical · S-QY636

Turnstile Conduit Rough-In Layout Plan

Elements

About this detail

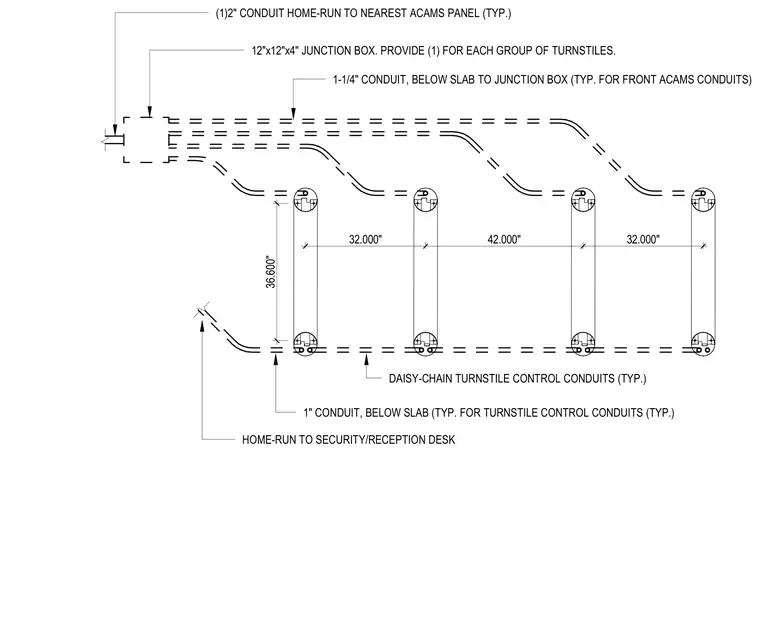

Turnstile control conduits run below the slab in a daisy-chain configuration connecting each turnstile unit, with a one-inch conduit typically specified for control lines. A twelve-by-twelve-by-four-inch junction box is provided for each group of turnstiles to route front access control and alarm monitoring system conduits. One two-inch home-run conduit extends to the nearest ACAMS panel, and additional home-run conduits connect to the security and reception desk. Spacing between turnstile units measures thirty-two inches and forty-two inches, with a thirty-six-point-six-inch overall transverse dimension.
