This construction joint detail for a concrete slab features a keyed interface with a depth equal to one-half of the slab thickness. All slab reinforcement continues uninterrupted through the joint. The joint layout specifies a maximum spacing of thirty inches with a six-inch minimum edge distance. Alternatively, the entire joint surface may be intentionally roughened at the contractor's option.

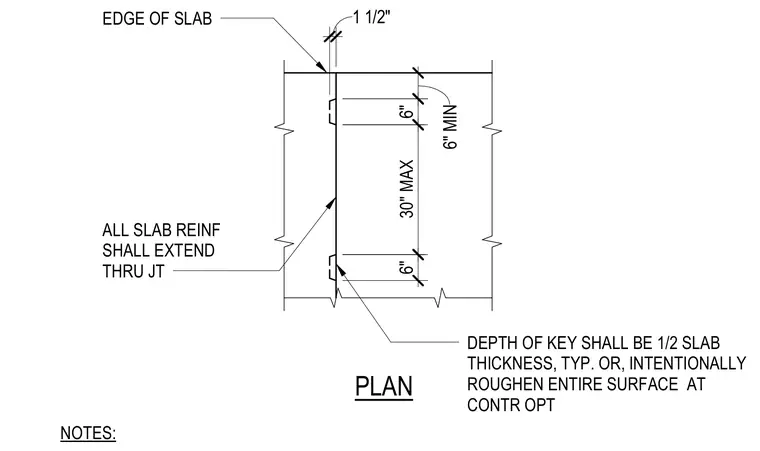

6" 30" MAX 6" 6" MIN EDGE OF SLAB ALL SLAB REINF SHALL EXTEND THRU JT DEPTH OF KEY SHALL BE 1/2 SLAB THICKNESS, TYP. OR, INTENTIONALLY ROUGHEN ENTIRE SURFACE AT CONTR OPT NOTES: PLAN 1 1/2" 30" MAX
