Structural · S-QXZQZ

Typical Wall Intersection

Materials

Elements

About this detail

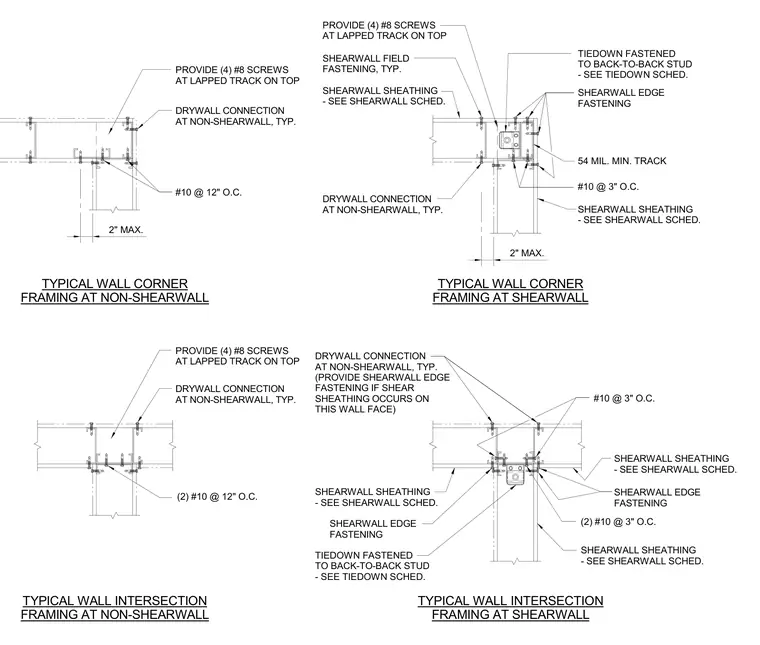

These details illustrate typical cold-formed steel framing configurations for wall corners and intersections at both shearwalls and non-shearwalls. The assemblies feature fifty-four mil minimum tracks, back-to-back studs at tiedowns, and layered sheathing fastened according to the shearwall schedule. Fasteners include number ten screws spaced at three inches on center for shearwall edges and number ten screws at twelve inches on center for non-shearwall drywall connections. Lapped tracks on top receive four number eight screws. Tiedowns are fastened directly to the back-to-back studs.
