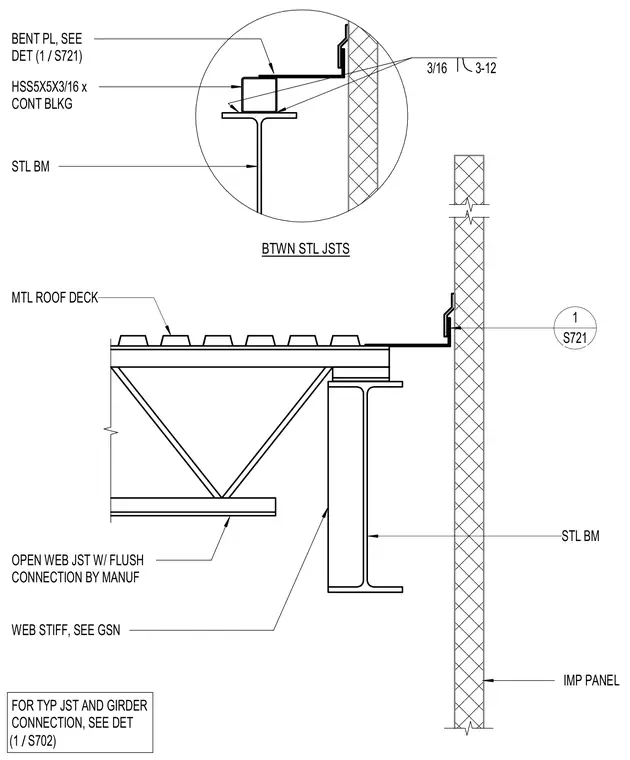

An open-web steel joist with a manufacturer-flush connection bears on a steel beam supporting a metal roof deck. A web stiffener is provided on the steel beam per general structural notes. An HSS5x5x3/16 hollow structural section serves as continuous blocking between the steel joists, tied with a bent plate detailed on sheet S721. An insulated metal panel assembly abuts the framing edge. A separate callout indicates typical joist and girder connection details on sheet S702.
IMP PANEL MTL ROOF DECK STL BM WEB STIFF, SEE GSN OPEN WEB JST W/ FLUSH CONNECTION BY MANUF 1 S721 BTWN STL JSTS HSS5X5X3/16 x CONT BLKG STL BM BENT PL, SEE DET / (1 S721) FOR TYP JST AND GIRDER CONNECTION, SEE DET / (1 S702) 3/16 3-12
