Light-gauge steel studs frame into a track sized to match the wall studs. An L2x2 clip angle matches the stud gauge and spans the stud width less one-half inch. Three number 10 sheet metal screws fasten each leg of the clip angle to the framing members.

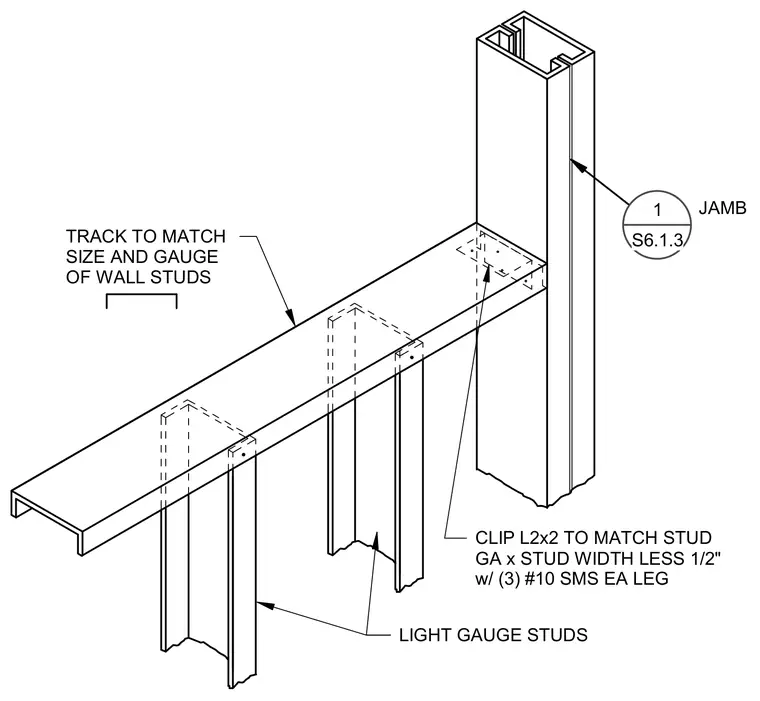

LIGHT GAUGE STUDS TRACK TO MATCH SIZE AND GAUGE OF WALL STUDS CLIP L2x2 TO MATCH STUD GA x STUD WIDTH LESS 1/2" w/ (3) #10 SMS EA LEG JAMB 1 S6.1.3
