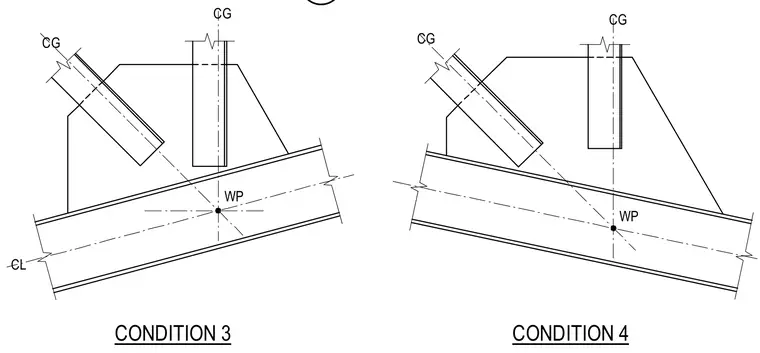

Two structural steel gusset plate connection conditions show the intersection of brace members and vertical members along a continuous chord or beam. Centerlines intersect at a designated work point to transfer lateral loads into the framing system. Gusset plates tie the diagonal brace, vertical member, and horizontal beam together at the joint.
