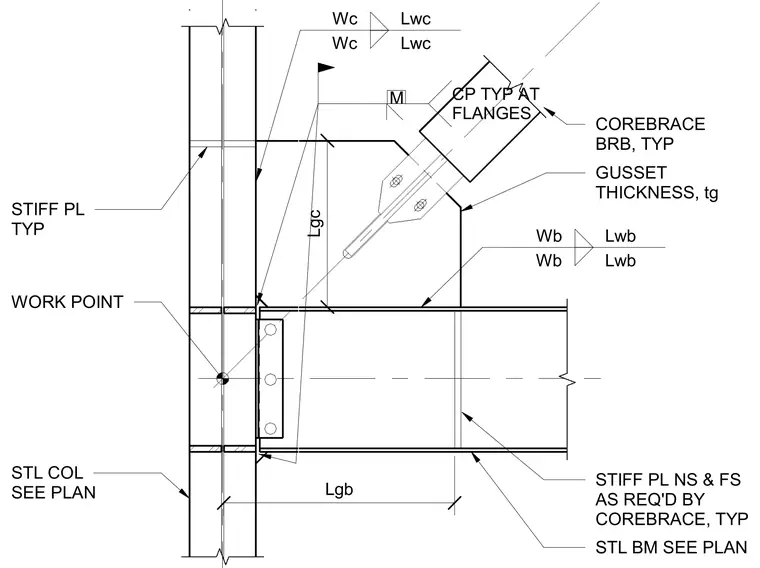

A CoreBrace buckling-restrained brace connects to a steel column and steel beam through a gusset plate sized by thickness tg. Stiffener plates are welded to the steel column and the steel beam on the near side and far side as required by the brace design. Complete joint penetration welds are specified at the brace flanges. A shear tab connects the steel beam web to the steel column flange.
Wb Lwb Wb Lwb CP TYP AT FLANGES WORK POINT STIFF PL TYP COREBRACE BRB, TYP GUSSET THICKNESS, tg STIFF PL NS & FS AS REQ'D BY COREBRACE, TYP Lgb Lgc STL BM SEE PLAN Wc Lwc Wc Lwc STL COL SEE PLAN M
