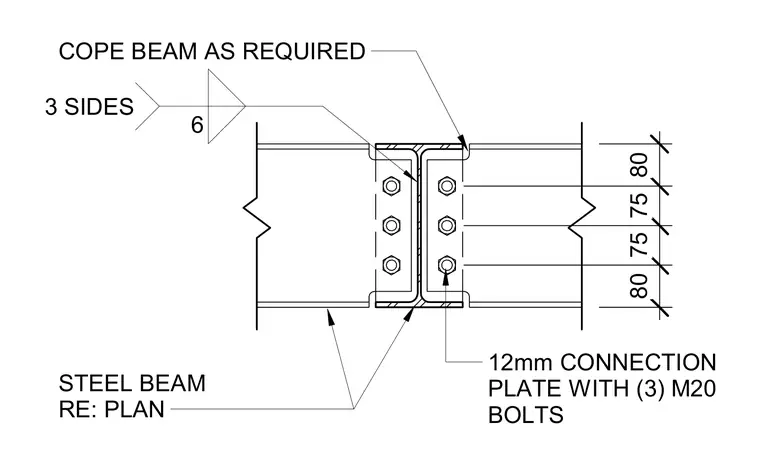

Steel beams are joined end-to-end using a 12mm connection plate secured by three M20 bolts on each side. The steel beams are coped as required to fit the connection geometry. A size 6 fillet weld is applied on three sides of the connecting elements.
80 75 75 80 12mm CONNECTION PLATE WITH (3) M20 BOLTS 6 3 SIDES COPE BEAM AS REQUIRED STEEL BEAM RE: PLAN
