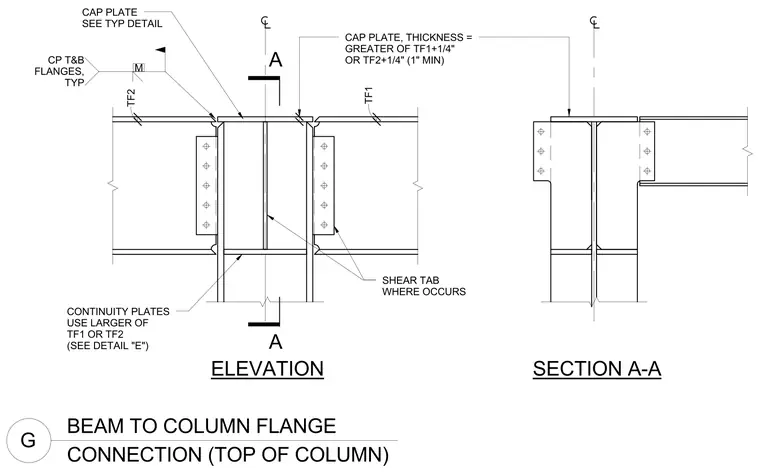

A steel beam-to-column flange connection at the top of a column features a cap plate, continuity plates, and a shear tab where required. The cap plate thickness is specified as the greater of the connected flange thicknesses TF1 or TF2 plus one-quarter inch, with a one-inch minimum. Continuity plates are sized using the larger of TF1 or TF2 per the reference detail. Shear tabs connect the beam webs to the column flange, accompanied by typical welds at the top and bottom beam flanges.
A A BEAM TO COLUMN FLANGE G CONNECTION (TOP OF COLUMN) SECTION A-A ELEVATION CONTINUITY PLATES USE LARGER OF TF1 OR TF2 (SEE DETAIL "E") CAP PLATE, THICKNESS = GREATER OF TF1+1/4" OR TF2+1/4" (1" MIN) TF2 TF1 . CP T&B FLANGES, TYP M CAP PLATE SEE TYP DETAIL SHEAR TAB WHERE OCCURS
