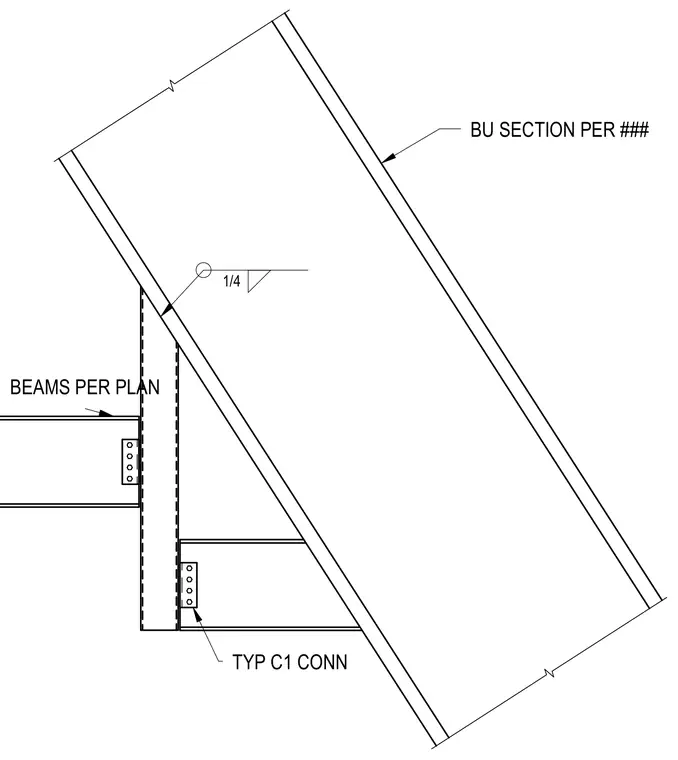

Steel beams frame into a built-up structural section with a typical C1 bolted connection. A quarter-inch fillet weld secures the member as specified per plan. The framing members are sized according to the structural plans.
