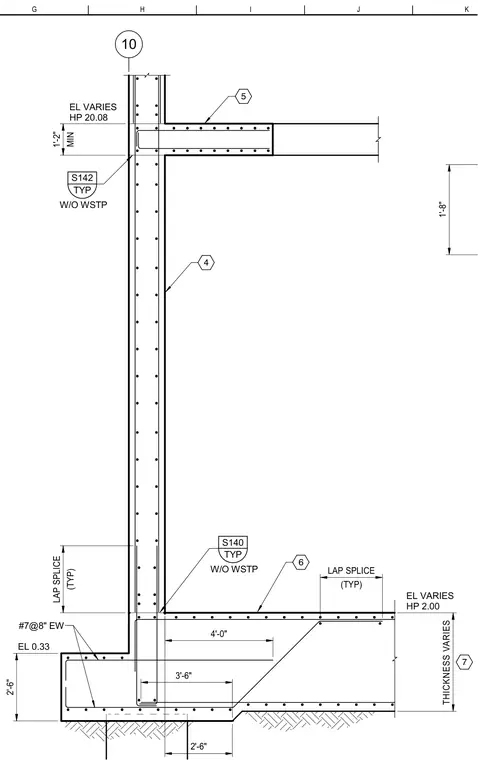

A reinforced concrete wall intersects with a stepped foundation footing. Vertical wall reinforcement consists of number 7 bars at 8 inches each way, with specified lap splice lengths. Elevations and footing thicknesses vary across the assembly as indicated on the drawing, featuring standard lap splices without waterstops at connection zones. The foundation detail incorporates specific dimensions for footing width, step-downs, and embedment depths.
10 5 EL VARIES HP 2.00 TYP S142 (TYP) LAP SPLICE W/O WSTP MIN 1'-2" EL VARIES HP 20.08 (TYP) LAP SPLICE 4 TYP S140 W/O WSTP 6 THICKNESS VARIES 7 2'-6" EL 0.33 3'-6" 4'-0" 2'-6" #7@8" EW 1'-8" K J I H G
