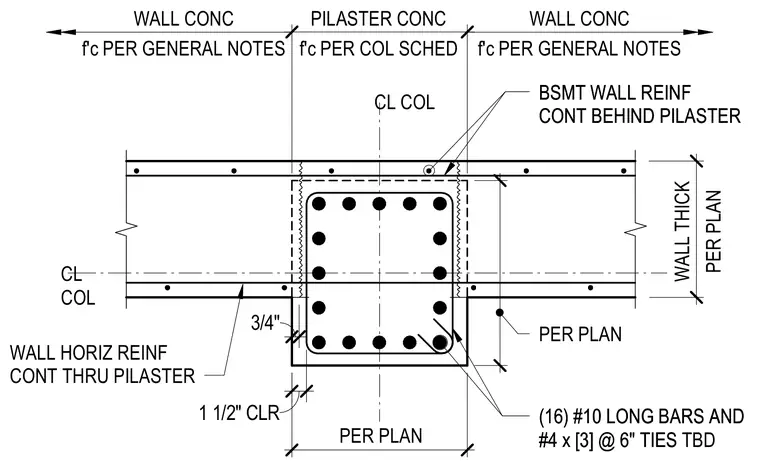

A concrete pilaster integrates with a concrete basement wall. The pilaster features sixteen number ten longitudinal bars and number four ties spaced at six inches on center. The basement wall horizontal reinforcement continues uninterrupted behind the pilaster. Concrete compressive strength is specified per plan and general notes with standard clearance dimensions.
1 1/2" CLR 3/4" 18" 19" 14" 18" PILASTER CONC PER PLAN WALL THICK PER PLAN WALL CONC WALL CONC CL COL CL COL (16) #10 LONG BARS AND #4 x [3] @ 6" TIES (16) #10 LONG BARS AND #4 x [3] @ 6" TIES TBD WALL HORIZ REINF CONT THRU PILASTER BSMT WALL REINF CONT BEHIND PILASTER BSMT WALL REINF CONT BEHIND PILASTER f'c PER COL SCHED f'c PER GENERAL NOTES f'c PER GENERAL NOTES PER PLAN
