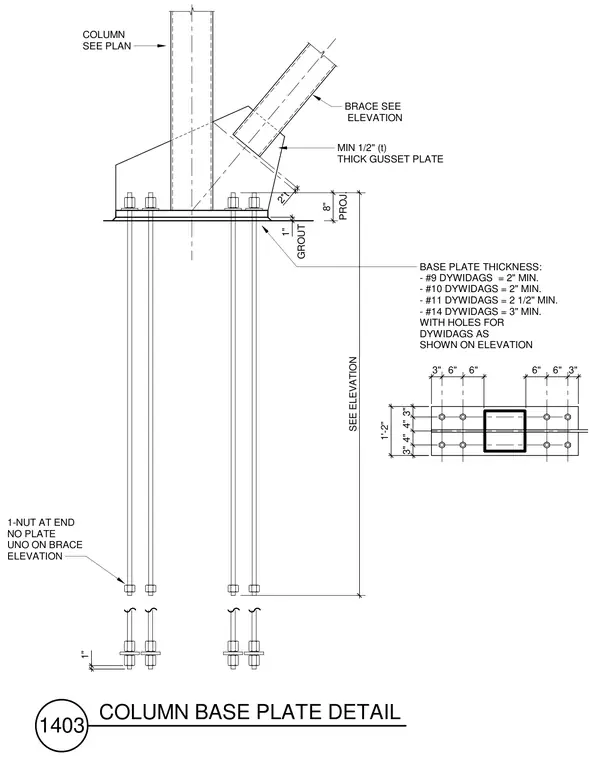

A structural steel column bears on a base plate supported by a one-inch grout layer and secured with Dywidag anchor rods. Base plate thickness varies by anchor size, requiring a minimum of two inches for number nine and ten bars, two and one-half inches for number eleven bars, and three inches for number fourteen bars. A brace connects to the column through a gusset plate that has a minimum thickness equal to two times the brace thickness, or one-half inch minimum. Anchor rods feature a single nut at the end without a plate, projecting eight inches above the base plate. A plan view shows the symmetrical bolt and column layout.
BASE PLATE THICKNESS: - #9 DYWIDAGS = 2" MIN. - #10 DYWIDAGS = 2" MIN. - #11 DYWIDAGS = 2 1/2" MIN. - #14 DYWIDAGS = 3" MIN. WITH HOLES FOR DYWIDAGS AS SHOWN ON ELEVATION COLUMN SEE PLAN BRACE SEE ELEVATION MIN 1/2" (t) THICK GUSSET PLATE 2*t 1" GROUT 6" 6" 3" 3" 4" 4" 3" 3" 6" 6" 1'-2" 1-NUT AT END NO PLATE UNO ON BRACE ELEVATION 1" SEE ELEVATION 8" PROJ. 1403 COLUMN BASE PLATE DETAIL
