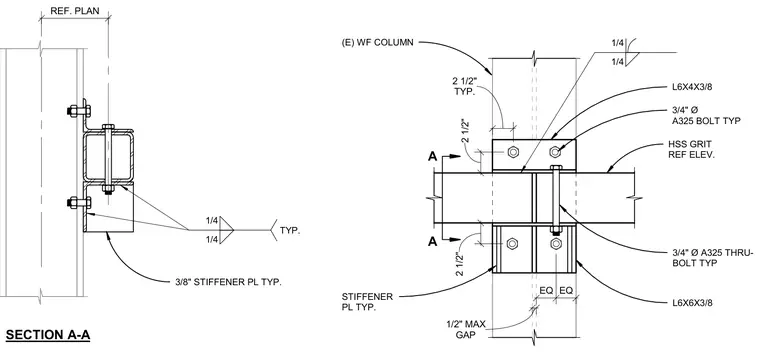

An HSS member connects to the flange of an existing wide flange column using top and bottom clip angles. The connection utilizes L6x4x3/8 and L6x6x3/8 structural angles fastened with three-quarter-inch diameter A325 bolts and three-quarter-inch diameter A325 through-bolts. Three-eighths-inch thick stiffener plates are welded to the assembly with quarter-inch fillet welds typical. A maximum gap of one-half inch is maintained at the joint.
GAP 1/2" MAX 2 1/2" TYP. 2 1/2" EQ EQ 2 1/2" (E) WF COLUMN L6X4X3/8 3/4" Ø A325 BOLT TYP 3/4" Ø A325 THRU- BOLT TYP L6X6X3/8 HSS GRIT REF ELEV. A A 1/4 1/4 3/8" STIFFENER PL TYP. 1/4 1/4 TYP. SECTION A-A REF. PLAN STIFFENER PL TYP.
