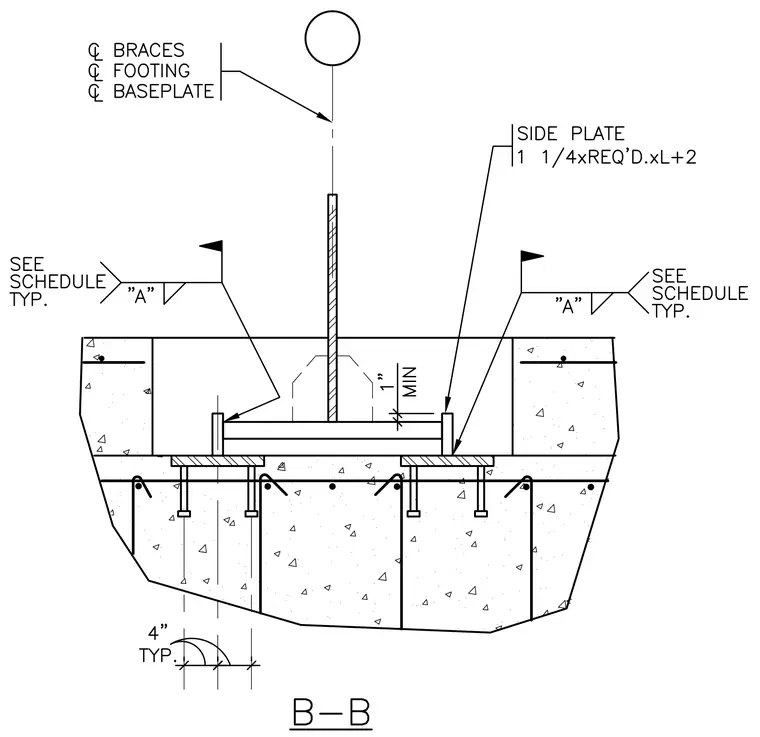

A vertical brace connects to a baseplate anchored within a concrete footing. Side plates sized at 1-1/4 inches by required length plus two inches are welded to the baseplate assembly with field weld symbols indicating specific sizes per schedule typical. Anchor bolts with hooked ends secure the baseplate into the reinforced concrete foundation. The centerlines align the braces, footing, and baseplate with a minimum one-inch clearance dimension shown.
