A precast panel holdown connection anchors a structural wall panel to a concrete foundation using embedded steel plates and reinforcing steel. Three number eight reinforcing bars measuring six feet long run each side, working alongside a one-inch by twenty-two-inch by one-foot-ten-inch base plate fastened with sixteen number seven bars. Gusset and stiffener plates including half-inch by ten-inch by one-foot-eight-inch and half-inch by eight-inch by one-foot plates weld to the assembly with five-sixteenth-inch and quarter-inch fillet welds on three sides. A two-and-a-half-inch grout layer sits beneath the panel above the base plate assembly.

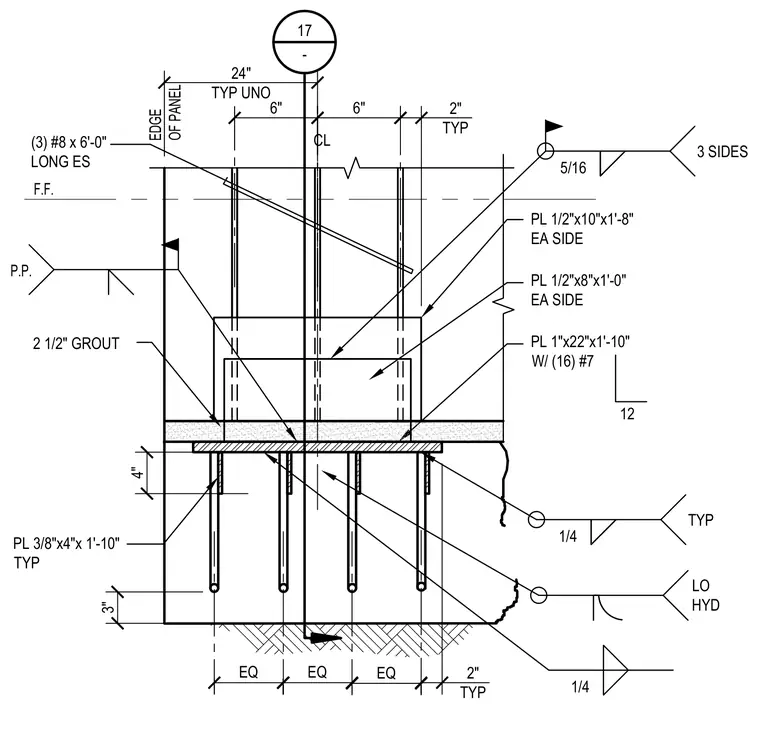

4" 3" PL 3/8"x4"x 1'-10" TYP LO HYD 2 1/2" GROUT F.F. (3) #8 x 6'-0" LONG ES PL 1"x22"x1'-10" W/ (16) #7 PL 1/2"x8"x1'-0" EA SIDE PL 1/2"x10"x1'-8" EA SIDE 17 - P.P. 2" TYP 1/4 1/4 TYP 5/16 3 SIDES 12 2" TYP EQ EQ 6" 6" CL EQ 24" TYP UNO EDGE OF PANEL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
