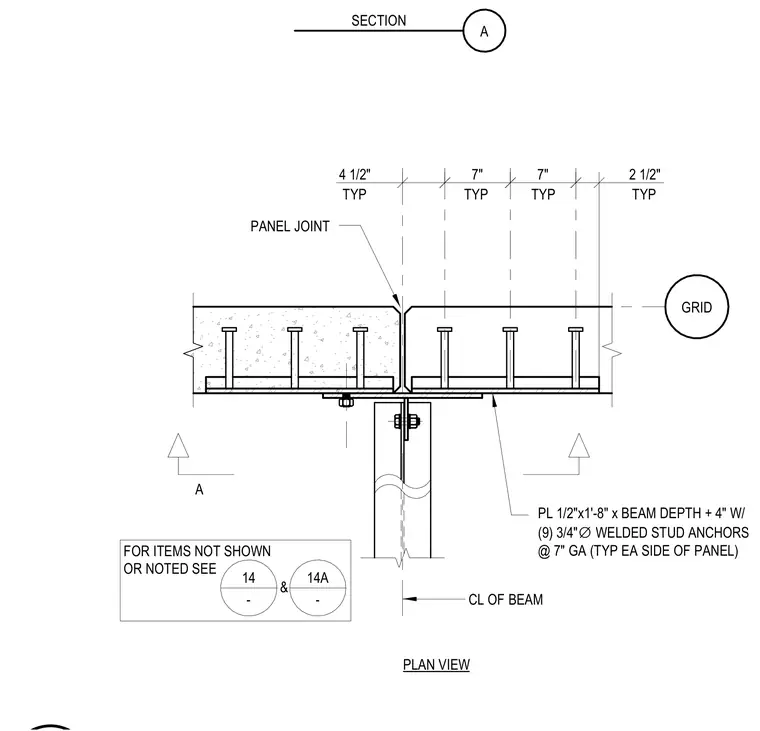

A structural steel beam supports precast concrete wall panels meeting at a vertical panel joint centered on the beam centerline. A half-inch thick steel plate spanning one foot eight inches by the beam depth plus four inches is anchored to each panel with nine three-quarter-inch diameter welded stud anchors at seven-inch gauge typical on each side of the panel. The connection details the alignment of the panel joint relative to the structural grid and beam centerline.
14 - PLAN VIEW 4 1/2" 7" 7" 2 1/2" GRID A SECTION PANEL JOINT CL OF BEAM PL 1/2"x1'-8" x BEAM DEPTH + 4" W/ (9) 3/4" ∅ WELDED STUD ANCHORS @ 7" GA (TYP EA SIDE OF PANEL) FOR ITEMS NOT SHOWN OR NOTED SEE TYP TYP TYP TYP A 14A - &
