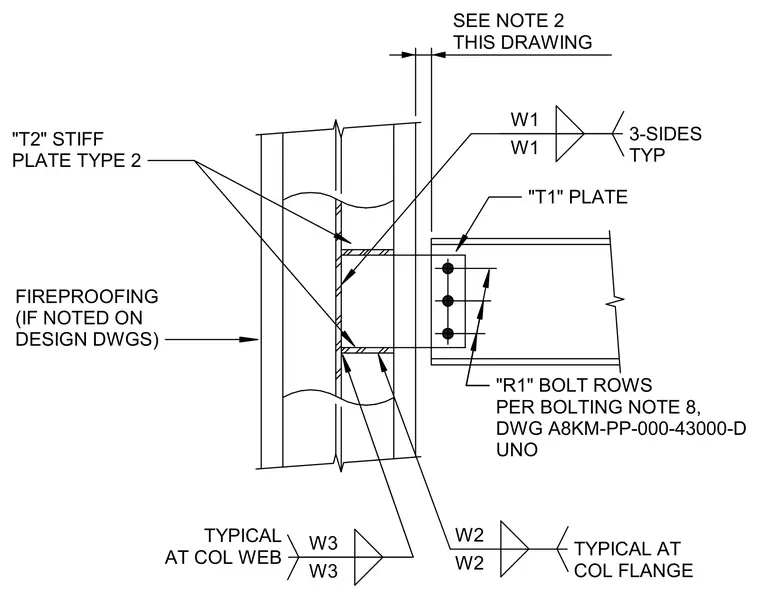

A structural steel beam frames into the web of a column using a bolted connection plate. Type 1 plates attach to the supported beam web with three bolt rows specified per engineering notes. Type 2 stiffener plates weld horizontally to the column web and flanges with fillet welds applied on three sides typically. Fireproofing is applied externally where required by design drawings.
FIREPROOFING (IF NOTED ON DESIGN DWGS) "T2" STIFF PLATE TYPE 2 "T1" PLATE TYPICAL AT COL FLANGE W2 W2 W1 W1 3-SIDES TYP SEE NOTE 2 THIS DRAWING TYPICAL AT COL WEB W3 W3 "R1" BOLT ROWS PER BOLTING NOTE 8, DWG A8KM-PP-000-43000-D UNO
