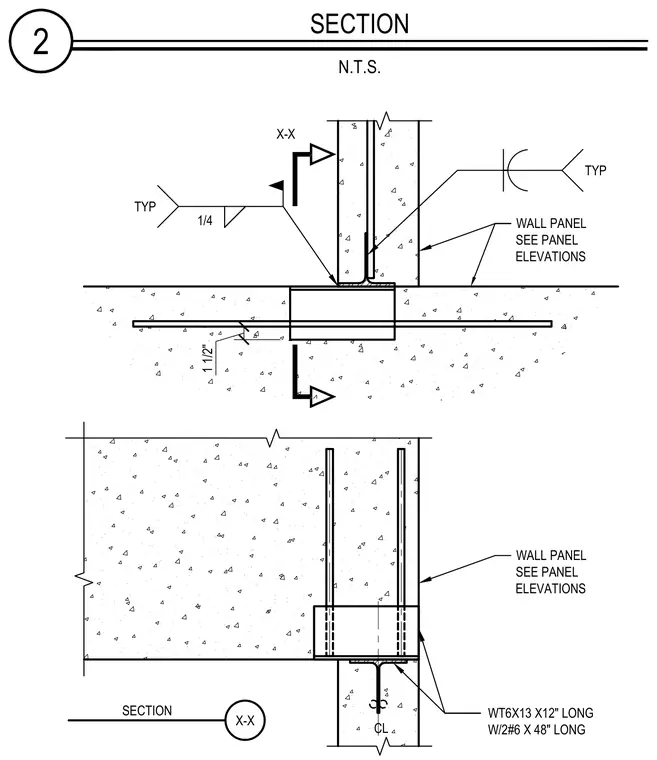

Precast concrete wall panels connect using a WT6x13 structural tee shape twelve inches long welded with quarter-inch fillet welds typical. Two number six reinforcing bars forty-eight inches long anchor into the concrete assembly per panel elevations. A centerline alignment and typical joint spacing of one and a half inches maintain panel separation.
2 SECTION N.T.S. 1 1/2" TYP 1/4 TYP CL X-X X-X SECTION WT6X13 X12" LONG W/2#6 X 48" LONG WALL PANEL SEE PANEL ELEVATIONS WALL PANEL SEE PANEL ELEVATIONS
