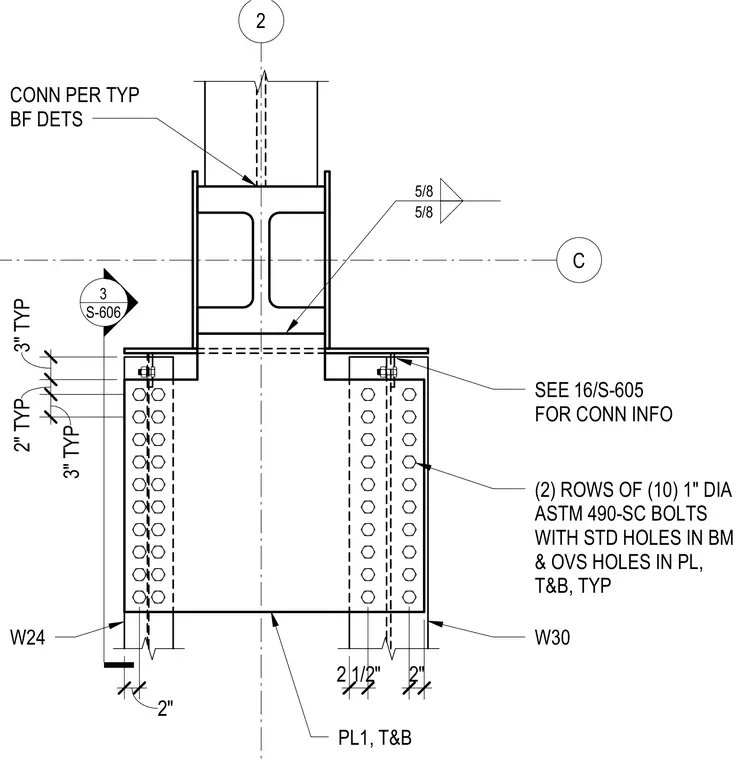

A heavy steel moment connection ties W24 and W30 wide-flange beams to a column. Top and bottom flange plates designated as PL1 connect the beam flanges to the assembly utilizing two rows of ten 1-inch diameter ASTM A490-SC bolts with standard holes in the beams and oversized holes in the plates. Five-eighths-inch fillet welds secure the connection components as indicated by standard weld symbols. Additional connection information is referenced on sheet S-605.
2 C SEE FOR CONN INFO 16/S-605 (2) ROWS OF (10) 1" DIA ASTM 490-SC BOLTS WITH STD HOLES IN BM & OVS HOLES IN PL, T&B, TYP 3" TYP 2" TYP 3" TYP 2" 2 1/2" 2" PL1, T&B W30 W24 CONN PER TYP BF DETS 5/8 5/8 3 S-606
