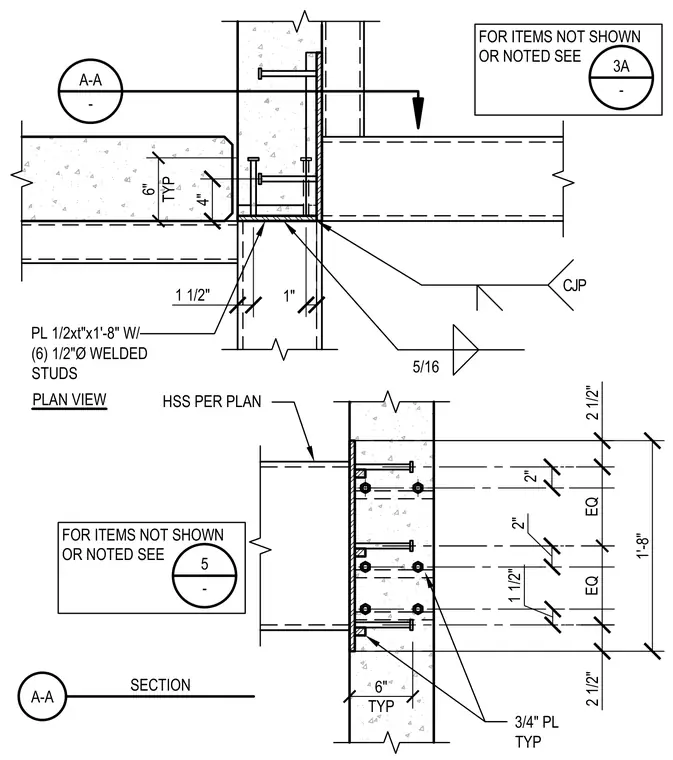

A hollow structural section member connects to a concrete wall using an embedded plate assembly. The connection features a half-inch thick plate measuring one foot eight inches long, anchored with six half-inch diameter welded studs. A complete joint penetration weld secures the structural steel framing to the embedded plate assembly. Typical fillet welds sized at five-sixteenths of an inch provide additional connection reinforcement. Detailed plan and section views specify the exact dimensional layout and edge distances for the embedded components.
A-A - 4" 1 1/2" 1" FOR ITEMS NOT SHOWN OR NOTED SEE 3A - 5/16 EQ 6" TYP HSS PER PLAN 2 1/2" EQ 2 1/2" 1'-8" 3/4" PL TYP FOR ITEMS NOT SHOWN OR NOTED SEE 5 - PL 1/2xt"x1'-8" W/ (6) 1/2"Ø WELDED STUDS 2" 2" 1 1/2" 6" TYP PLAN VIEW A-A SECTION CJP
