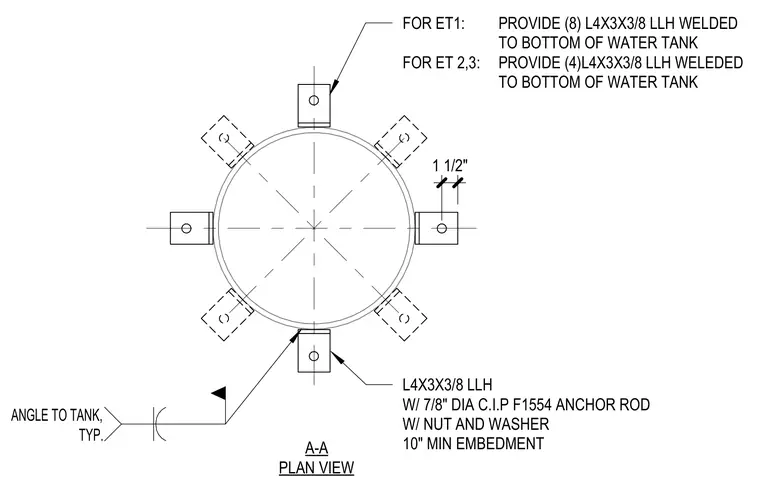

Eight L4x3x3/8 long-leg horizontal angles are welded to the bottom of the water tank for ET1, while four of the same angles are provided for ET 2 and 3. Each structural steel angle secures with a seven-eighths-inch diameter ASTM F1554 cast-in-place anchor rod equipped with a nut and washer. The anchor rods require a minimum embedment of ten inches into the concrete support.
1 1/2" ANGLE TO TANK, TYP. FOR ET1: PROVIDE (8) L4X3X3/8 LLH WELDED TO BOTTOM OF WATER TANK FOR ET 2,3: PROVIDE (4)L4X3X3/8 LLH WELEDED TO BOTTOM OF WATER TANK L4X3X3/8 LLH W/ 7/8" DIA C.I.P F1554 ANCHOR ROD W/ NUT AND WASHER 10" MIN EMBEDMENT A-A PLAN VIEW
