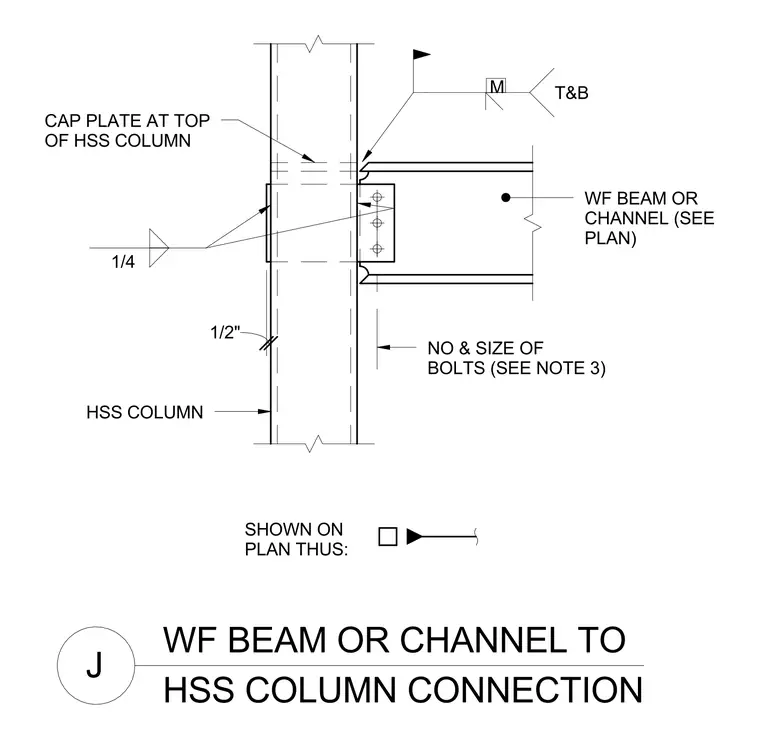

A wide-flange beam or channel frames into an HSS column using a bolted connection with the number and size of bolts sized per plan. A cap plate is located at the top of the HSS column. A one-quarter inch fillet weld attaches the connection plate to the HSS column. Additional weld symbols indicate top and bottom welding requirements.
WF BEAM OR CHANNEL TO J HSS COLUMN CONNECTION NO & SIZE OF BOLTS (SEE NOTE 3) HSS COLUMN WF BEAM OR CHANNEL (SEE PLAN) CAP PLATE AT TOP OF HSS COLUMN T&B 1/2" 1/4 M SHOWN ON PLAN THUS:
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
