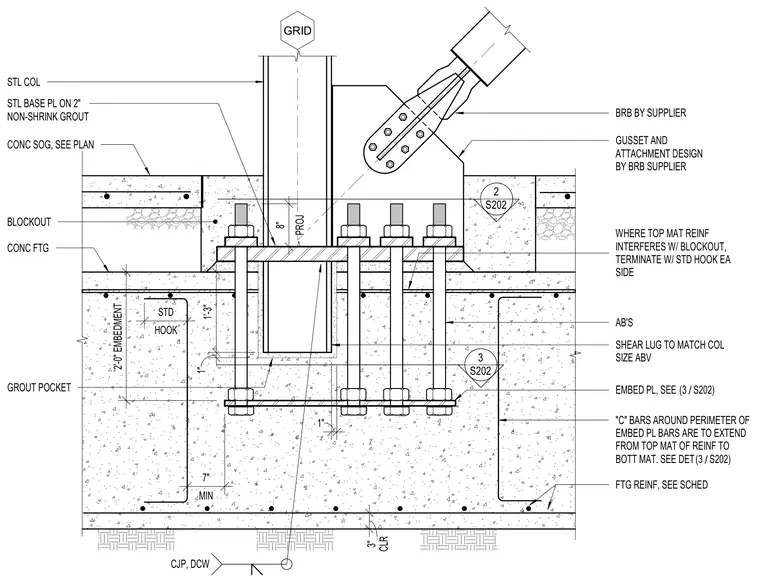

A structural steel column rests on a steel base plate set upon a two-inch non-shrink grout layer atop a concrete footing. A buckling-restrained brace connects via a gusset plate welded to the column, with the gusset and attachment design provided by the brace supplier. Anchor bolts secure the base plate and extend down to a lower embedded plate with C-shaped perimeter reinforcing bars that span between the top and bottom mats of the footing reinforcement. A shear lug matching the column size extends downward into a grout pocket within the footing. A blockout is provided around the column base, and footing reinforcement is detailed with standard hooks where it interferes with the blockout.
GRID CONC FTG BLOCKOUT CONC SOG, SEE PLAN STL BASE PL ON 2" NON-SHRINK GROUT STL COL BRB BY SUPPLIER GUSSET AND ATTACHMENT DESIGN BY BRB SUPPLIER AB'S FTG REINF, SEE SCHED "C" BARS AROUND PERIMETER OF EMBED PL BARS ARE TO EXTEND FROM TOP MAT OF REINF TO BOTT MAT. SEE DET EMBED PL, SEE / (3 S202) 2 S202 MIN 7" HOOK STD PROJ 8" 3 S202 SHEAR LUG TO MATCH COL SIZE ABV GROUT POCKET 2'-0" EMBEDMENT WHERE TOP MAT REINF INTERFERES W/ BLOCKOUT, TERMINATE W/ STD HOOK EA SIDE CJP, DCW CLR 3" 1'-3" 1" 1" / (3 S202)
