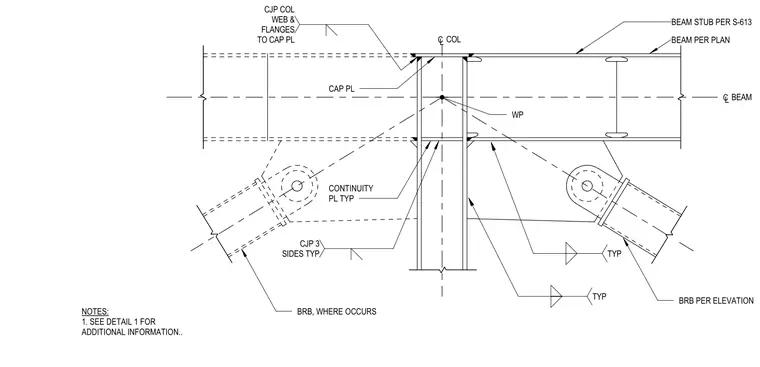

A buckling-restrained brace frames into a column flange with braces positioned below the beam. A cap plate is welded to the column web and flanges using complete joint penetration welds. Continuity plates are provided typically at the column web align with the beam flanges. A beam stub per the structural drawings extends from the column, while the buckling-restrained brace connects per the elevations.
TYP TYP BRB, WHERE OCCURS BRB PER ELEVATION WP CJP COL WEB & FLANGES TO CAP PL CJP 3 SIDES TYP CONTINUITY PL TYP CAP PL BEAM STUB PER S-613 BEAM PER PLAN NOTES: 1. SEE DETAIL 1 FOR ADDITIONAL INFORMATION.. C L BEAM C L COL
