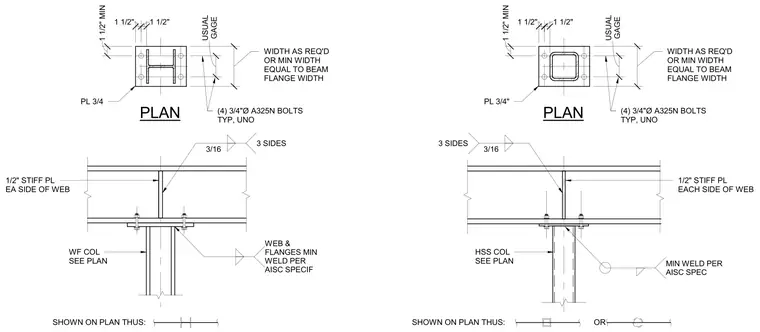

A continuous wide-flange beam frames into either a wide-flange or hollow structural section column. A three-quarter-inch plate welded to the top of the column receives four three-quarter-inch diameter A325-N bolts in a typical layout with usual gauge dimensions and a width equal to the beam flange. Half-inch stiffener plates are welded to each side of the beam web aligned with the column supports using three-sixteenth-inch fillet welds on three sides. Additional welds connect the web and flanges per American Institute of Steel Construction specifications.
1/2" STIFF PL EA SIDE OF WEB WF COL SEE PLAN PLAN PL 3/4 (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2" SHOWN ON PLAN THUS: SHOWN ON PLAN THUS: OR HSS COL SEE PLAN 1/2" STIFF PL EACH SIDE OF WEB 3/16 3 SIDES MIN WELD PER AISC SPEC PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS TYP, UNO WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH GAGE USUAL . 1 1/2" MIN 1 1/2" 1 1/2"
