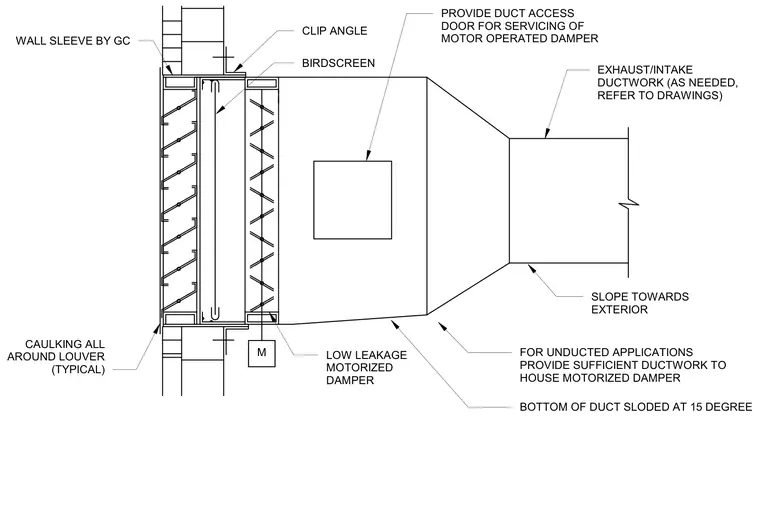

An exterior wall louver assembly integrates with a low-leakage motorized damper, a birdscreen, and a wall sleeve provided by the general contractor. A clip angle secures the installation while caulking is applied all around the louver perimeter. Exhaust or intake ductwork connects to the transition, featuring a bottom sloped at fifteen degrees towards the exterior. A duct access door is provided for servicing the motor-operated damper, and unducted applications include sufficient ductwork to house the motorized unit.
FOR UNDUCTED APPLICATIONS PROVIDE SUFFICIENT DUCTWORK TO HOUSE MOTORIZED DAMPER M BIRDSCREEN WALL SLEEVE BY GC SLOPE TOWARDS EXTERIOR PROVIDE DUCT ACCESS DOOR FOR SERVICING OF MOTOR OPERATED DAMPER EXHAUST/INTAKE DUCTWORK (AS NEEDED, REFER TO DRAWINGS) CLIP ANGLE LOW LEAKAGE MOTORIZED DAMPER CAULKING ALL AROUND LOUVER (TYPICAL) BOTTOM OF DUCT SLODED AT 15 DEGREE
