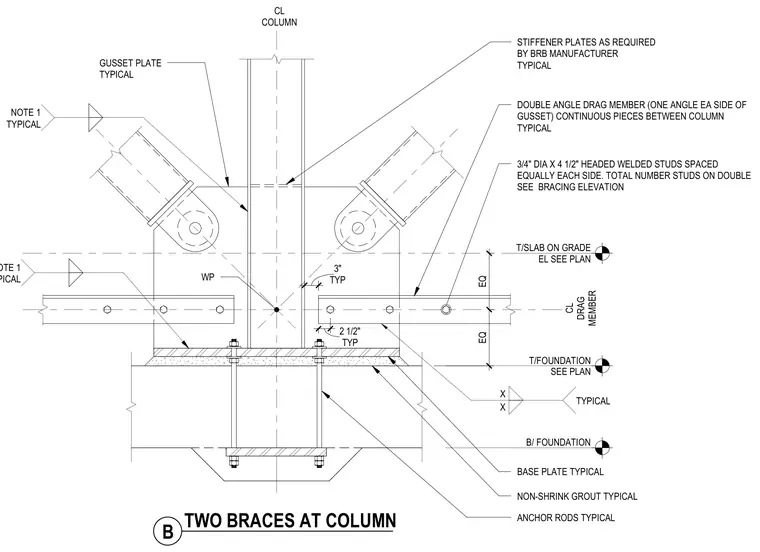

A structural steel column bears on a base plate set over non-shrink grout and anchored to a concrete foundation with anchor rods. Gusset plates attach to the column web and flanges to receive buckling-restrained braces, with stiffener plates provided as required by the manufacturer. Double angle drag members run continuously past each side of the gusset plate and connect to the column. Three-quarter-inch diameter by four-and-a-half-inch long headed welded studs are spaced equally on each side of the connection assembly.
EL SEE PLAN T/SLAB ON GRADE SEE PLAN T/FOUNDATION B/ FOUNDATION EQ EQ CL DRAG MEMBER WP B TWO BRACES AT COLUMN TYP 3" TYP 2 1/2" 3/4" DIA X 4 1/2" HEADED WELDED STUDS SPACED EQUALLY EACH SIDE. TOTAL NUMBER STUDS ON DOUBLE SEE BRACING ELEVATION CL COLUMN BASE PLATE TYPICAL NON-SHRINK GROUT TYPICAL ANCHOR RODS TYPICAL X X TYPICAL GUSSET PLATE TYPICAL STIFFENER PLATES AS REQUIRED BY BRB MANUFACTURER TYPICAL NOTE 1 TYPICAL NOTE 1 TYPICAL DOUBLE ANGLE DRAG MEMBER (ONE ANGLE EA SIDE OF GUSSET) CONTINUOUS PIECES BETWEEN COLUMN TYPICAL
