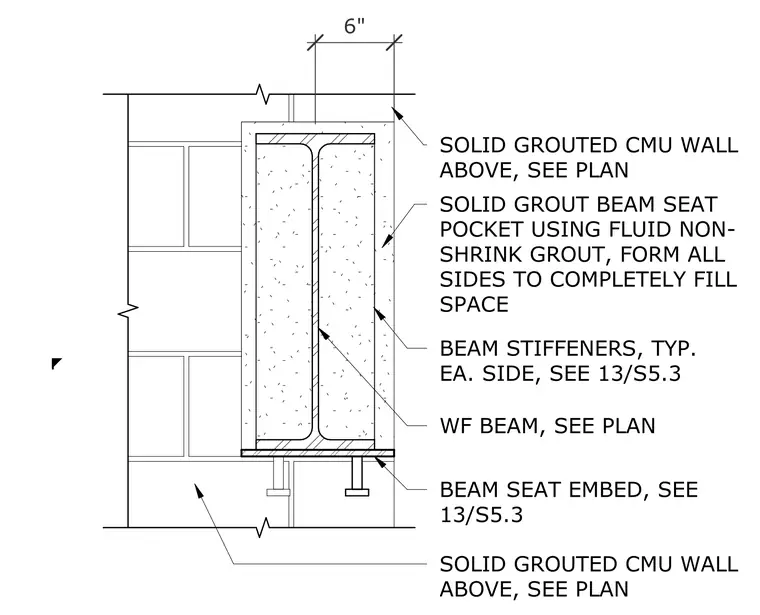

This assembly features a wide flange beam supported by a steel beam seat embed plate anchored into a concrete masonry unit wall. The beam includes stiffener plates on each side of the web, as detailed in reference 13/S5.3. The beam seat pocket is filled with fluid non-shrink grout, requiring formwork on all sides to ensure the space is completely filled. The surrounding masonry wall is solid grouted as indicated on the structural plans.
Text on the drawing
6" SOLID GROUTED CMU WALL ABOVE, SEE PLAN SOLID GROUT BEAM SEAT POCKET USING FLUID NON- SHRINK GROUT, FORM ALL SIDES TO COMPLETELY FILL SPACE BEAM STIFFENERS, TYP. EA. SIDE, SEE 13/S5.3 WF BEAM, SEE PLAN BEAM SEAT EMBED, SEE 13/S5.3 SOLID GROUTED CMU WALL ABOVE, SEE PLAN 14 S5.3
