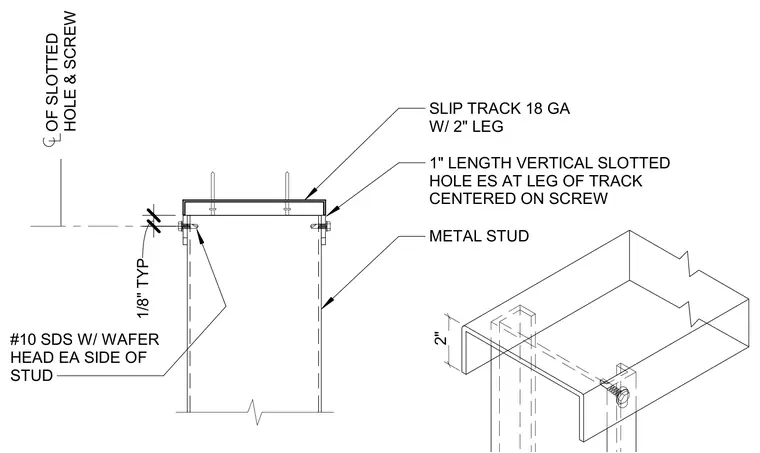

A metal stud connects to an eighteen-gauge slip track with a two-inch leg using number ten self-drilling screws with wafer heads on each side of the stud. One-inch length vertical slotted holes are provided at each side of the track leg, centered on the screw with a typical one-eighth-inch clearance.
2" SLIP TRACK 18 GA W/ 2" LEG #10 SDS W/ WAFER HEAD EA SIDE OF STUD 1" LENGTH VERTICAL SLOTTED HOLE ES AT LEG OF TRACK CENTERED ON SCREW METAL STUD 1/8" TYP OF SLOTTED HOLE & SCREW
