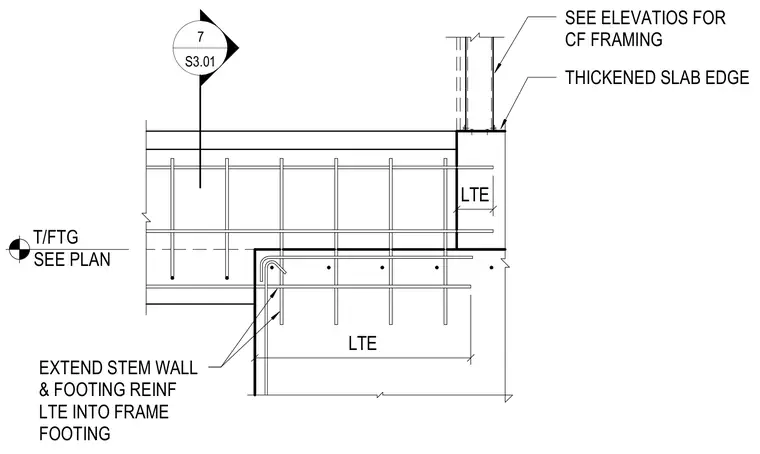

A concrete stem wall and footing intersection features a thickened slab edge supporting cold-formed steel framing above. Stem wall and footing reinforcement extends continuously into the frame footing, and specific framing requirements are coordinated per the architectural elevations.
T/FTG SEE PLAN SEE ELEVATIOS FOR CF FRAMING THICKENED SLAB EDGE 7 S3.01 LTE LTE EXTEND STEM WALL & FOOTING REINF LTE INTO FRAME FOOTING
