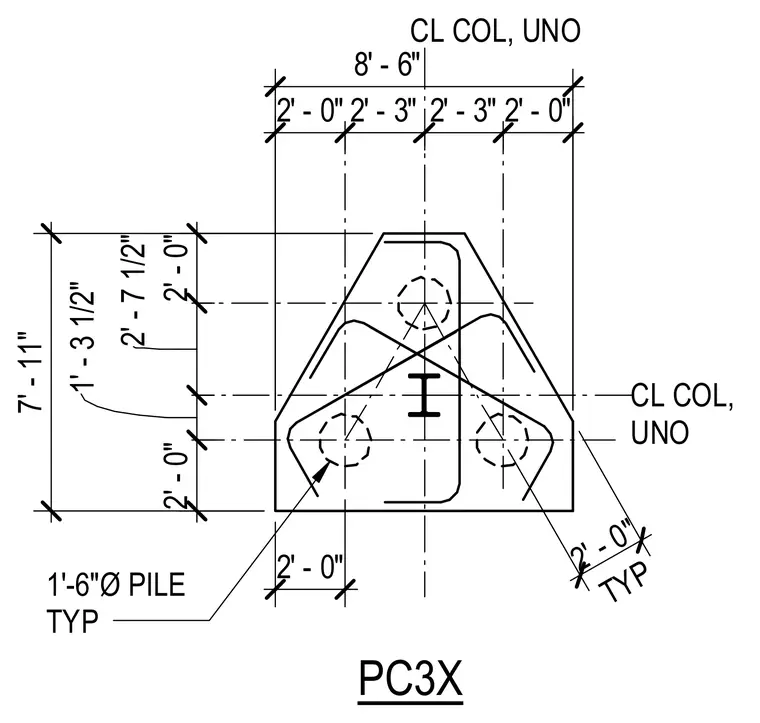

A three pile cap supports a centrally located column. The cap dimensions measure seven feet eleven inches by eight feet six inches overall. Three one-foot-six-inch diameter piles are positioned symmetrically beneath the cap, spaced two feet typical from the outer edges. Reinforcing bars and centerlines are dimensioned relative to the column centerline typical on all unset conditions.
PC3X CL COL, UNO CL COL, UNO 8' - 6" 2' - 0" 2' - 3" 2' - 3" 2' - 0" 2' - 0" 1' - 3 1/2" 2' - 7 1/2" 2' - 0" 7' - 11" 1'-6"Ø PILE TYP 2' - 0" TYP 2' - 0"
