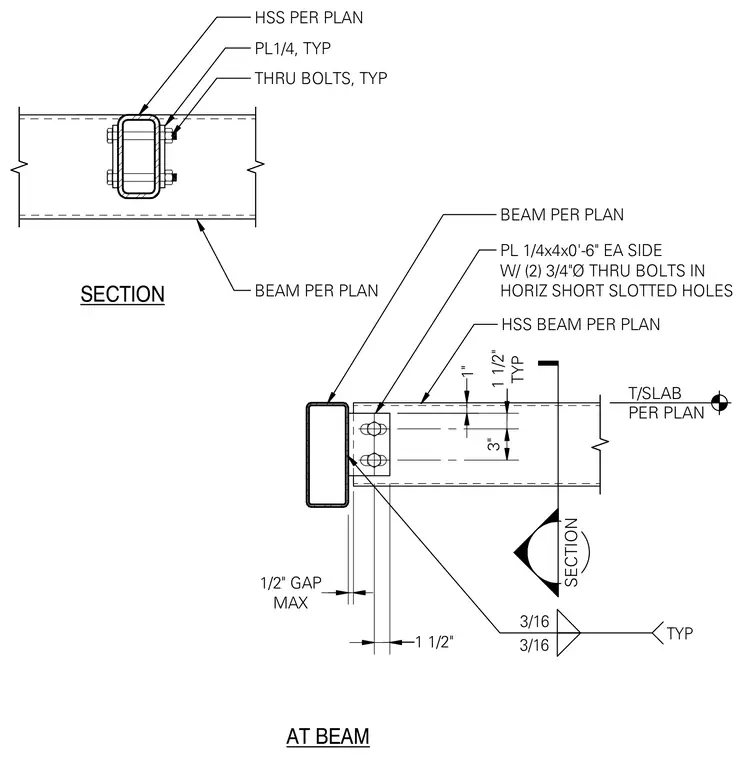

A spreader beam connects to a hollow structural section framing member using quarter-inch thick side plates on each side. Two three-quarter inch diameter through-bolts pass through horizontal short slotted holes to secure the assembly, maintaining a maximum one-half inch gap. Three-sixteenth inch typical fillet welds complete the structural connection below the slab level.
1" MAX 1/2" GAP AT BEAM BEAM PER PLAN SECTION PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES BEAM PER PLAN 3/16 3/16 TYP HSS BEAM PER PLAN SECTION 3" TYP 1 1/2" 1 1/2" T/SLAB PER PLAN
