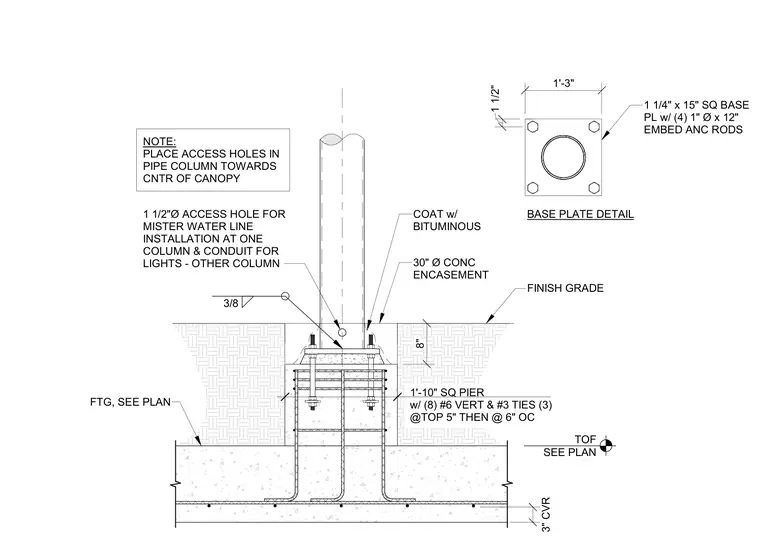

A structural steel pipe column transfers loads through a square base plate secured by four embedded anchor rods into a reinforced concrete pier and footing assembly. The column base and embedded hardware are protected with a bituminous coating and surrounded by a concrete encasement below the finish grade. The pier is reinforced with eight vertical bars and ties spaced at specific intervals. A dedicated access hole is provided in the pipe column for utility line installation toward the center of the canopy.
TOF SEE PLAN 3/8 COAT w/ BITUMINOUS . 1'-10" SQ PIER w/ (8) #6 VERT & #3 TIES (3) @TOP 5" THEN @ 6" OC 3" CVR 8" 1'-3" 1 1/2" 1 1/4" x 15" SQ BASE PL w/ (4) 1" Ø x 12" EMBED ANC RODS FINISH GRADE BASE PLATE DETAIL 30" Ø CONC ENCASEMENT FTG, SEE PLAN 1 1/2"Ø ACCESS HOLE FOR MISTER WATER LINE INSTALLATION AT ONE COLUMN & CONDUIT FOR LIGHTS - OTHER COLUMN NOTE: PLACE ACCESS HOLES IN PIPE COLUMN TOWARDS CNTR OF CANOPY
