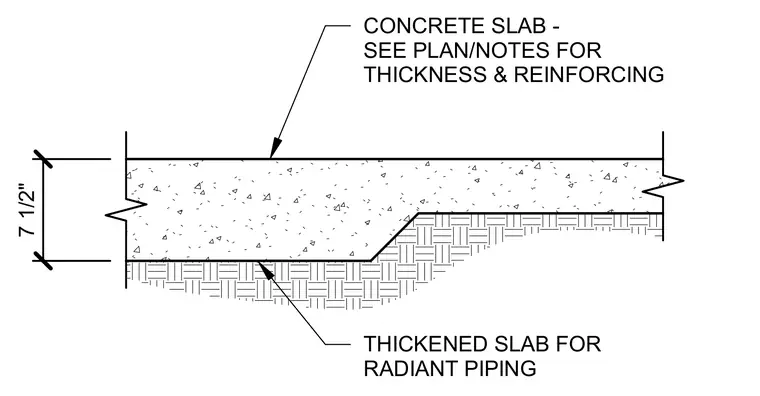

A seven-and-a-half-inch thick concrete slab transitions to a thickened profile to accommodate embedded radiant heating piping. The concrete bears directly on compacted subgrade. Slab thickness and reinforcing schedules are coordinated per structural plans and notes.
7 1/2" THICKENED SLAB FOR RADIANT PIPING CONCRETE SLAB - SEE PLAN/NOTES FOR THICKNESS & REINFORCING
