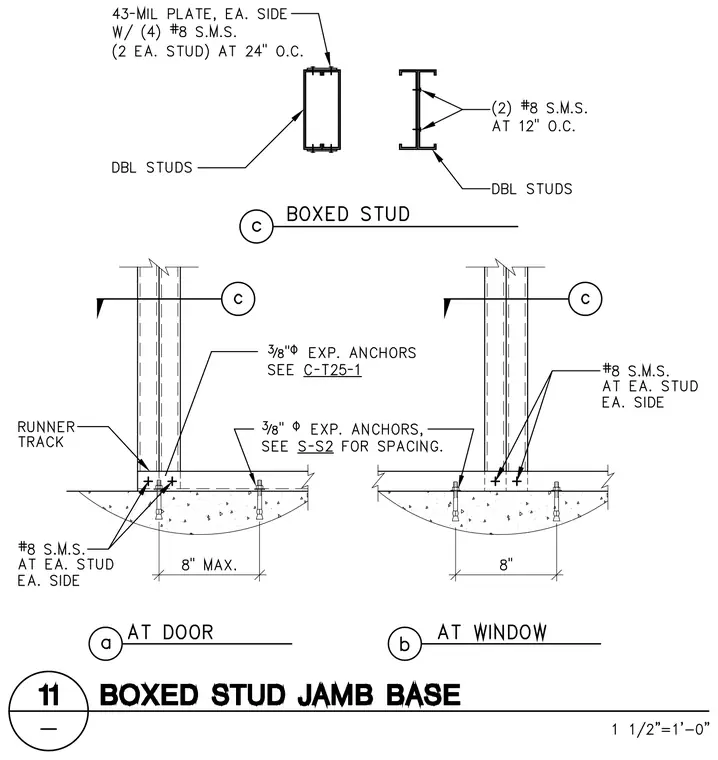

Double cold-formed steel studs are configured into a boxed stud shape with a forty-three-mil plate secured on each side using four number eight sheet metal screws, with two screws per stud spaced at twenty-four inches on center. The runner track is secured to the concrete slab using three-eighths-inch diameter expansion anchors spaced at a maximum of eight inches, complemented by number eight sheet metal screws at each stud on each side. The assembly details the base connection conditions specifically adapted for door and window frame rough openings.
