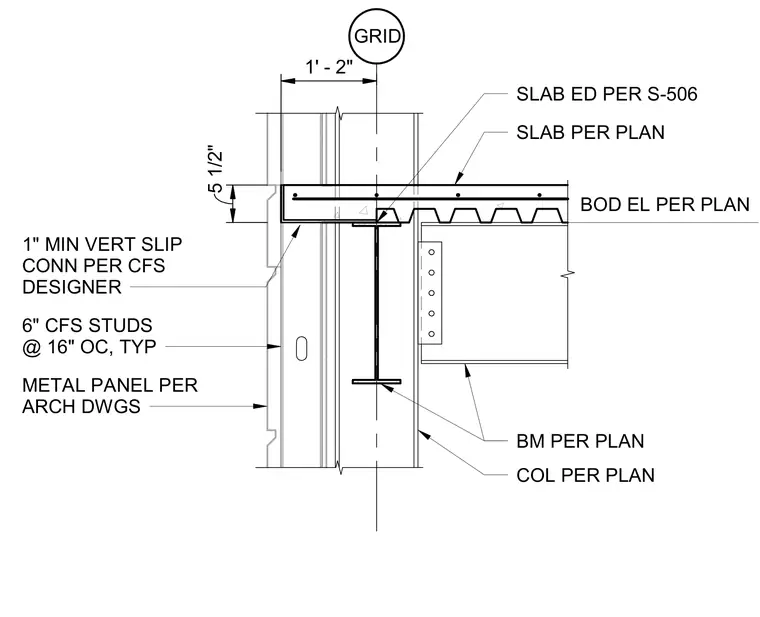

Cold-formed steel studs measuring six inches at sixteen inches on center support exterior metal panel assemblies. A one-inch minimum vertical slip connection engineered per the cold-formed steel designer accommodates differential movement between the framing and the floor slab. The floor slab bears on a structural steel beam and column grid per plan.
SLAB PER PLAN BM PER PLAN GRID 1' - 2" SLAB ED PER S-506 METAL PANEL PER ARCH DWGS 6" CFS STUDS @ 16" OC, TYP 1" MIN VERT SLIP CONN PER CFS DESIGNER 5 1/2" COL PER PLAN BOD EL PER PLAN 116' - 2 1/2"
