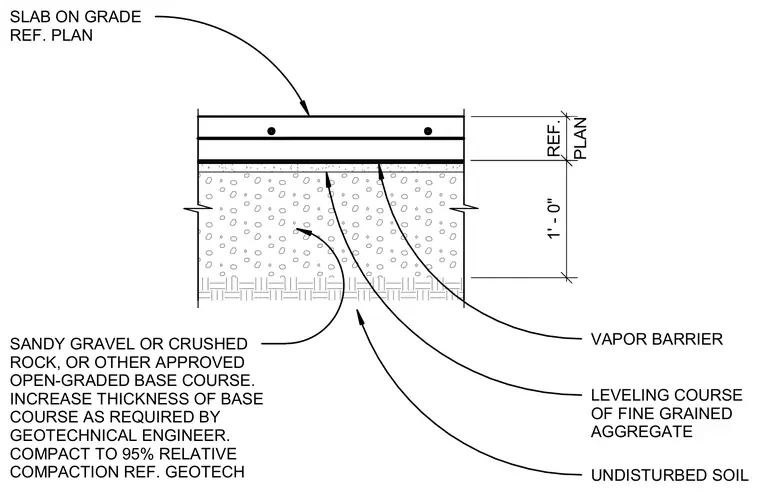

A concrete slab on grade sits atop a vapor barrier and a leveling course of fine-grained aggregate. The underlying open-graded base course consists of sandy gravel, crushed rock, or another approved material, with its thickness increased as required by the geotechnical engineer. The base course is compacted to ninety-five percent relative compaction over undisturbed soil.
VAPOR BARRIER SLAB ON GRADE REF. PLAN PLAN REF. LEVELING COURSE OF FINE GRAINED AGGREGATE SANDY GRAVEL OR CRUSHED ROCK, OR OTHER APPROVED OPEN-GRADED BASE COURSE. INCREASE THICKNESS OF BASE COURSE AS REQUIRED BY GEOTECHNICAL ENGINEER. COMPACT TO 95% RELATIVE COMPACTION REF. GEOTECH UNDISTURBED SOIL 1' - 0"
